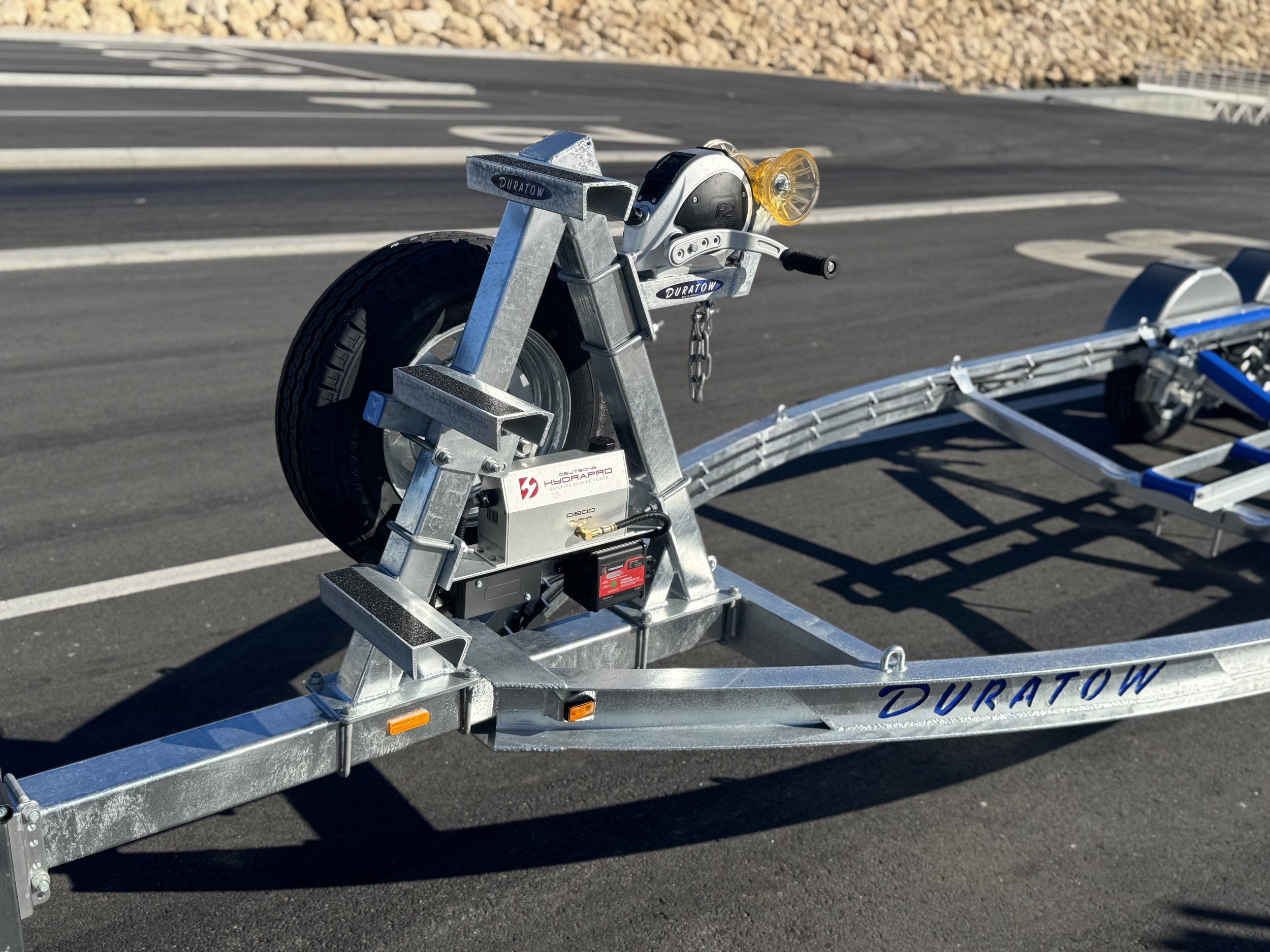

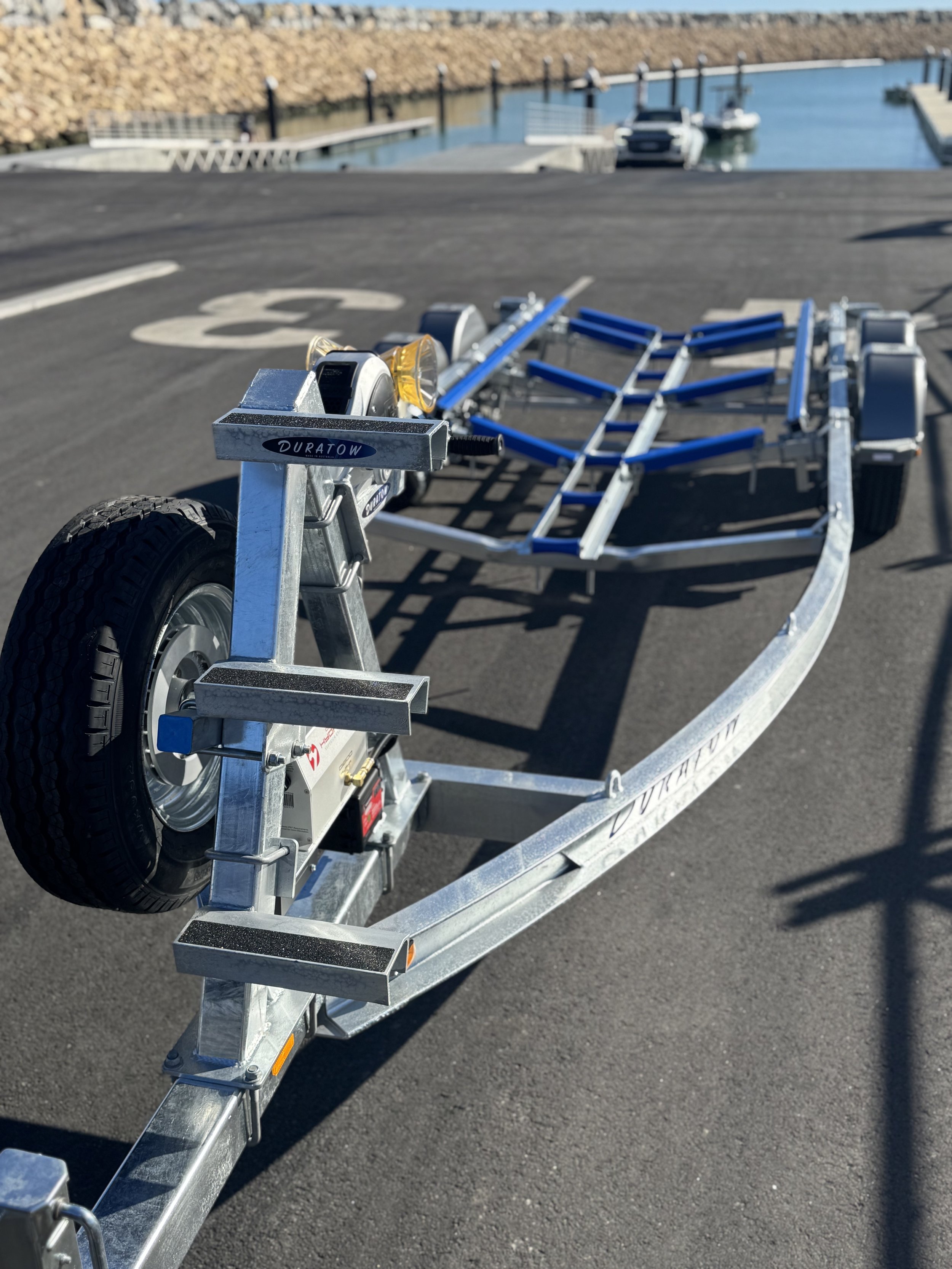

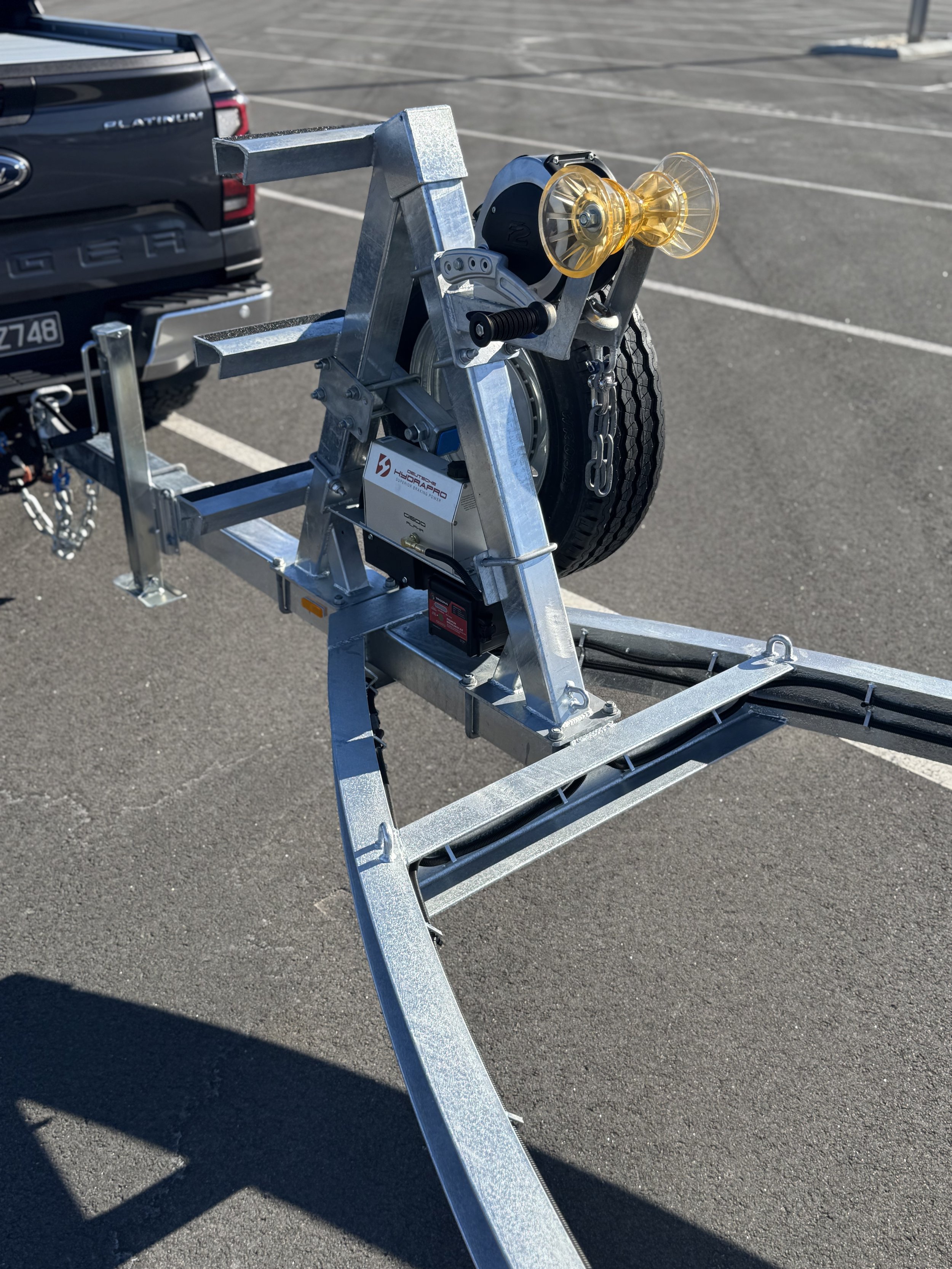

DURATOW XL WINCH POST
The Duratow XL Winch Post is a robust, heavy-duty winch post designed specifically for boat trailers, offering exceptional strength, durability, and functionality in marine environments. Constructed from two 75x75mm galvanised rectangular hollow section (RHS) steel posts, the structure forms an A-frame configuration, with the posts angled inward and welded at the top. The total height of the assembly is 925mm, with an 860mm outer width . This Australian-made winch post is engineered for reliability, featuring a hot-dip galvanised finish for superior corrosion resistance, making it ideal for saltwater conditions.
Key Features:
Construction: Comprises two 75x75mm RHS galvanised steel posts, angled and welded at the top to form a sturdy A-frame structure.
Dimensions:
Height: 925mm vertical height to the top weld.
Base Width: 860mm total width including post widths.
Post Cross-Section: 75mm x 75mm each.

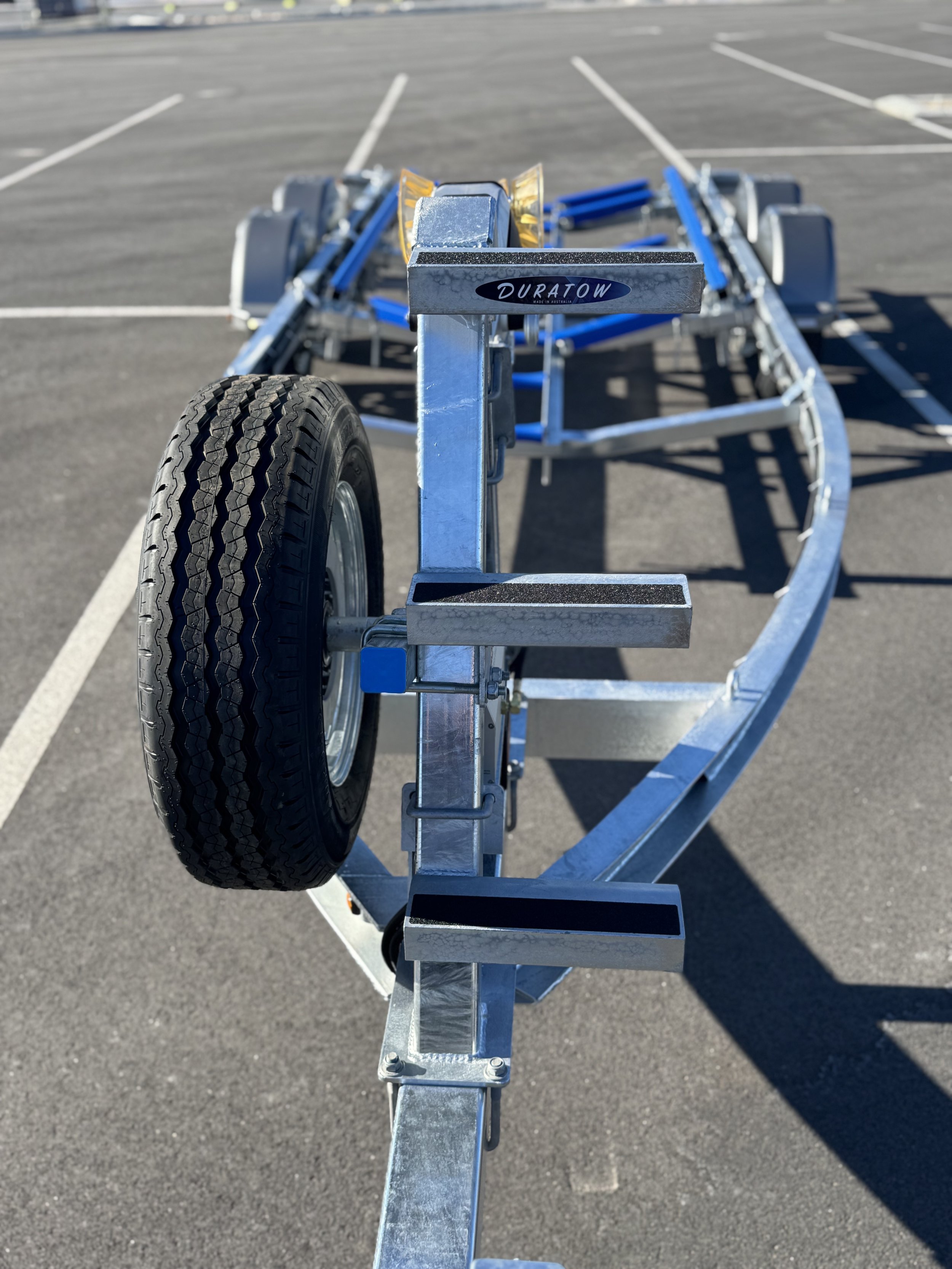

Integrated Steps: Front post features 3 welded steps - providing safe and convenient access to the boat for loading, unloading, or maintenance.
Galvanised Finish: Hot-dip galvanised coating ensures long-lasting protection against rust and corrosion, perfect for harsh marine environments.
Mounting: Designed for easy installation on 100mm trailer drawbars using 1/2" diameter U-bolts (sold separately). Pre-drilled holes at the base of each post ensure secure attachment.
Applications: Ideal for a wide range of boat trailers, including those for tinnies, fibreglass vessels, or custom builds, providing reliable winch positioning and easy boat access.
Installation Notes:
Mounts to the trailer tongue using 1/2" U-bolts .
The A-frame design ensures stability, with the angled posts distributing load evenly during winching.
Pair with a matching winch carrier top or complete winch post assembly kit for optimal performance.
Benefits:
Durability: The galvanised steel construction withstands harsh marine conditions, extending the lifespan of the winch post.
Safety and Convenience: Integrated steps eliminate the need for additional tongue step pads, offering easy access to the boat’s bow.
Versatility: Suitable for medium to large boat trailers, with a robust design that supports heavy-duty winching operations.
Australian-Made Quality: Crafted with precision to meet the demands of Australian boaters.
The Duratow XL Winch Post combines strength, practicality, and corrosion resistance, making it an essential component for boaters seeking a reliable, long-lasting winching solution for their trailer. For further details or to confirm specifications get in touch.
